Product Description

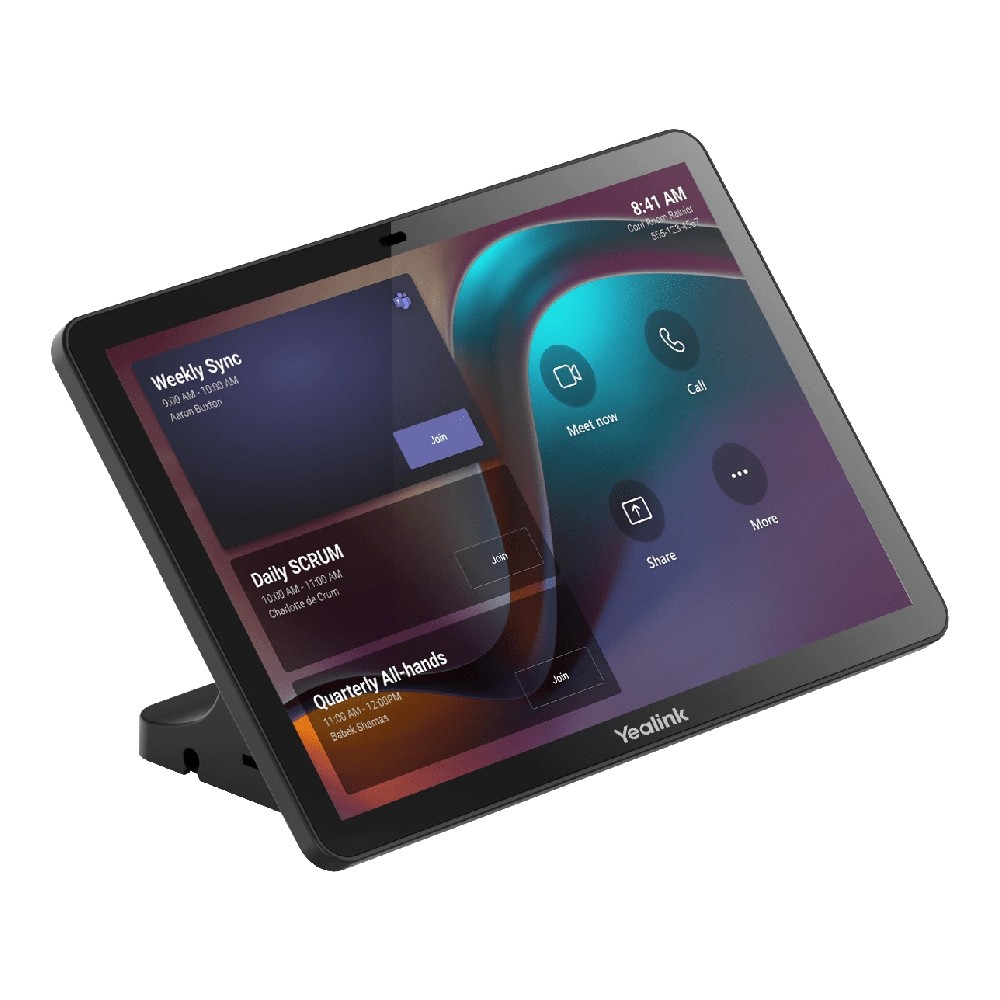

Touch Console CTP25 The Power of Touch.
With just one touch, you can start or join a meeting, and navigate all meeting controls on the CTP25. This includes adjusting the camera, changing participant layouts, recording, and more. The 10.1-inch IPS display ensures crisp and clear visuals, while the fingerprint-resistant surface keeps the screen looking pristine and easy to use.
Flexibility Maximized
The touch console CTP25 can be mounted on the desk or wall, and it offers flexible connectivity options with direct connection to the bar or via IP.
Simplify with One Plug
The One-Cable Solution simplifies deployment and sharing in 2 ways. A single Cat5e cable from the bar to the touch console provides power and network connectivity to the touch console, eliminating extra cables. Signing in on the CTP25 synchronizes the entire system, removing the need to sign in on the touch console. Additionally, a single USB-C cable from the CTP25 to the PC enables 4K sharing, BYOD, and PDcharging.
Key Features
- 10.1 inches, and ultra-high screen-to-body ratio
- Support Android 13 (continue to update)
- MDEP Supported
- USB-C wired content sharing/BYOD/power
- Ultrasonic technology
- Multiple deployment methods
Technical Specifciations
- OS: Android 13.0
- Display
- Screen: 10.1 inch
- Display Type: IPS
- Resolution: 1280 x 800
- Contrast ratio: 1000:1
- Brightness: 350 cd/㎡ (typical)
- Viewing angle (horizontal/vertical): 178°(H)/178°(V)
- Touchpoints: Multi-points capacitive touch support
- Anti-glare
- Anti-fingerprint
- Audio: Built-in Ultrasound Unit
- Wireless
- Wi-Fi 6 802.11a/b/g/n/ac/ax
- Bluetooth 5.0
- Network
- VLAN, 802.1P/Q, and Diffserv
- 802.1X, and LLDP-MED
- HTTPS
- Device Management
- Yealink Web Portal
- Yealink Device Management Platform
- Teams Admin Center
- Zoom Device Management
- Physical Interface
- 1 x USB-A port
- 2 x USB-C port
- 1 x RJ45 port (PoE 802.3af compaint)
- 1 x Reset hole
- Motion Sensor
- Installation
- Place on the Table
- Mount on the Table
- Mount on the Wall
- Environment
- Operating Temperature: -10 to +45°C
- Storage Temperature: -30 to +70°C
- Power
- Power Consumption:
- Standby: 5 W
- Average: 7.3 W
- Peak: 15.2 W
- Power Adapter: 65W PD
- PoE: IEEE 802.3af and above
- Power Consumption:
- Dimension: 242.95 × 27.50 × 161.95 mm
- Weight: 0.683 kg
What's Included
- CTP25
- 7.5m Ethernet Cable
- 1.2m USB-C Cable
- PD Power Adapter (65W)
- Screwdriver
- High Stand
- Cable Management Cover
- M3 Screws * 10
- Cable Ties * 5
- Quick Start Guide
