Product Description

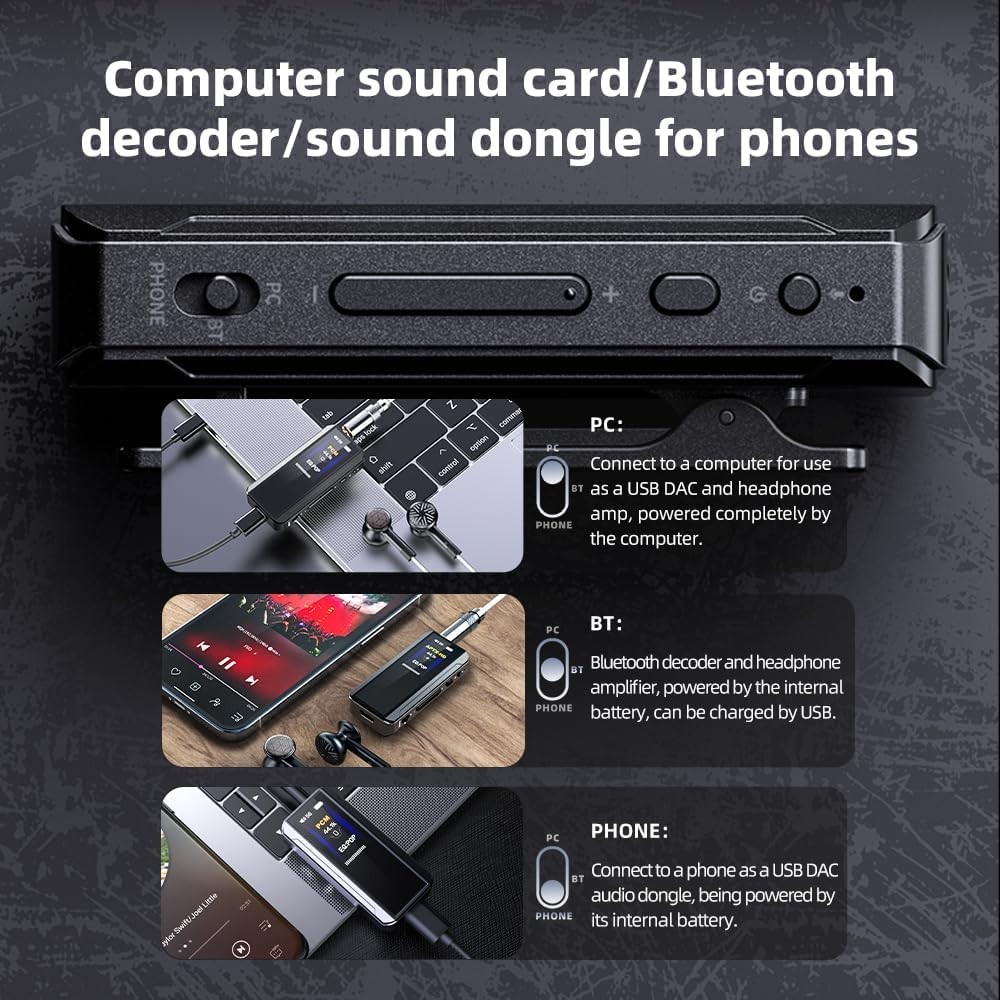

Computer sound card/Bluetooth decoder/sound dongle for phones
Various use cases, all handled by one device

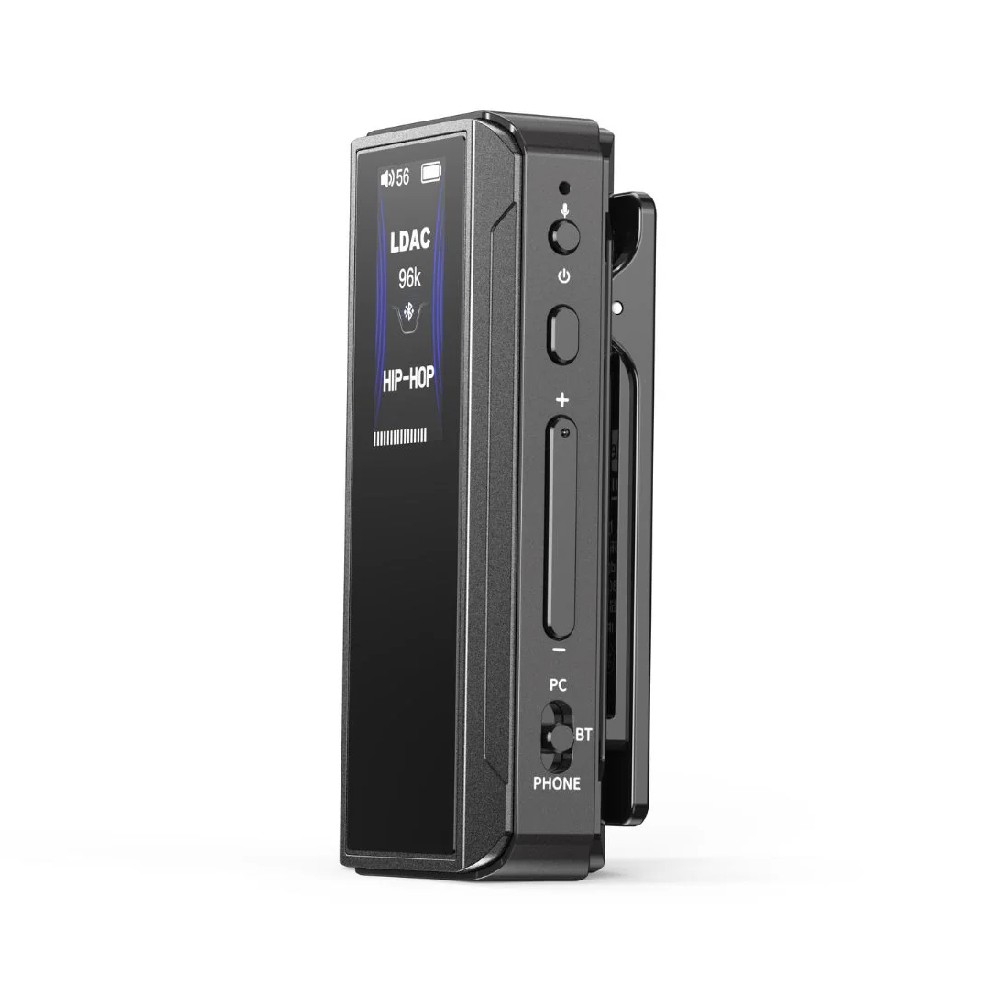

With the three-position toggle switch, conveniently switch between the PC/BT/PHONE modes for the BTR13 to work as a computer sound card, Bluetooth decoder, and audio dongle, respectively. Not only does it eliminate the tedious setting of switching between different devices, but it also meets your needs for multiple scenarios in one tiny device.
Global PEQ, use it well to make it sound well
Thanks to FiiO’s self-developed adjustment algorithm, get access to a high-quality PEQ easily adjustable through the app or the web! Whether using the preset EQ online, sharing them among audiophiles, or fine-tuning the EQ frequency, gain, and bandwidth on your own, the BTR13 can satisfy your personalised tuning needs.
Dual high-res Bluetooth/USB sound card modes

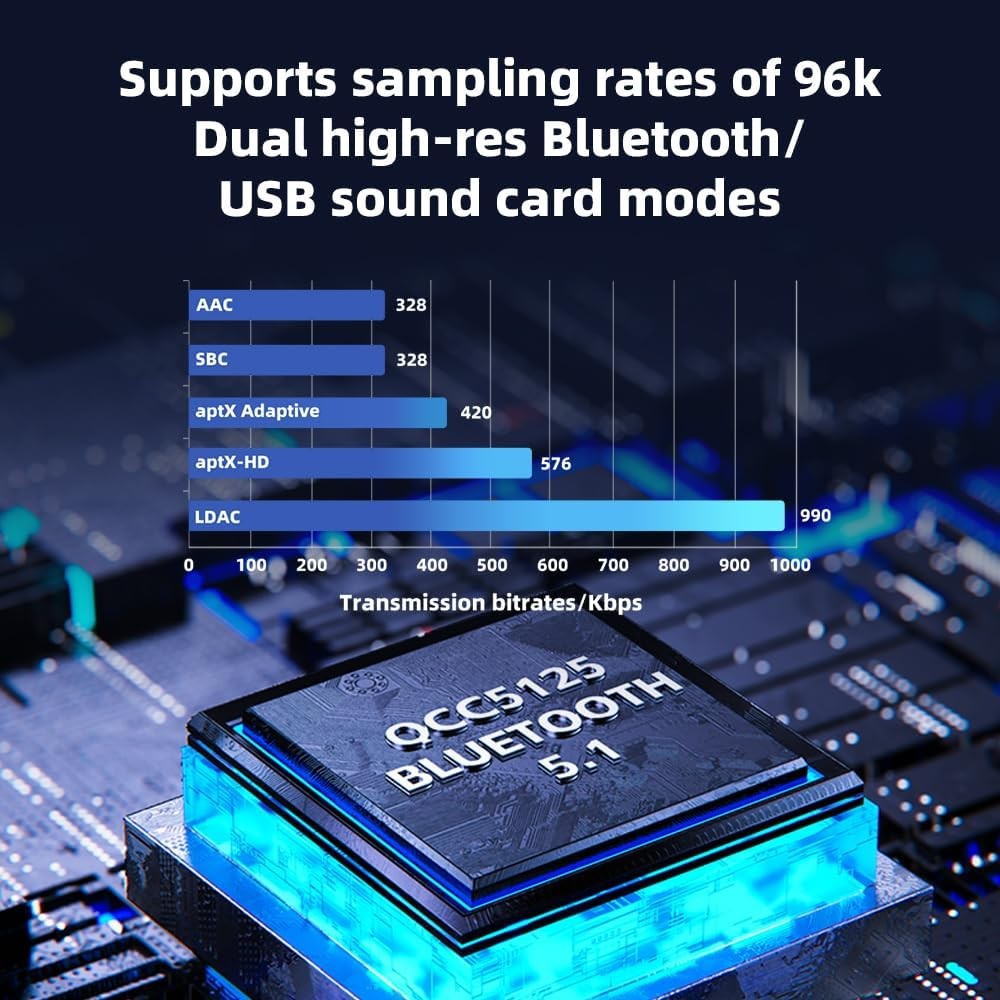

The BTR13 adopts Qualcomm QCC5125 Bluetooth chip, supports LDAC, aptX, aptX LL, aptX Adaptive, aptX HD and other Bluetooth codecs, allowing it to support high-resolution audio transmission up to 96k in both Bluetooth and USB DAC modes, ensuring you can enjoy high-fidelity music across various devices.
Lightweight body, heavyweight performance
With its ultra-lightweight body of only 28.6g, the BTR13 is a perfect blend of easy portability and high performance. Relying on the built-in amplifier’s independent power supply system to maximise performance, the BTR13 has its balanced output power soared to 220mW+220mW, increased by a staggering 282% compared to the previous BTR3K, which is the top of the power output of similar products with the same chip.
Dual high-end CS43131 DACs, 0.96-inch large colour IPS display, Patented card mode, Supports mics and in-line controls, App control supports, Supports UAC1.0 mode... There are many other impressive features.
Key Features
- Acts as a computer sound card/Bluetooth decoder/sound dongle for phones Supports HD Bluetooth codec LDAC
- Dual CS43131 fully balanced
- Powerful 220mW output Global PEQ
- 3.5 +4.4 headphone outs

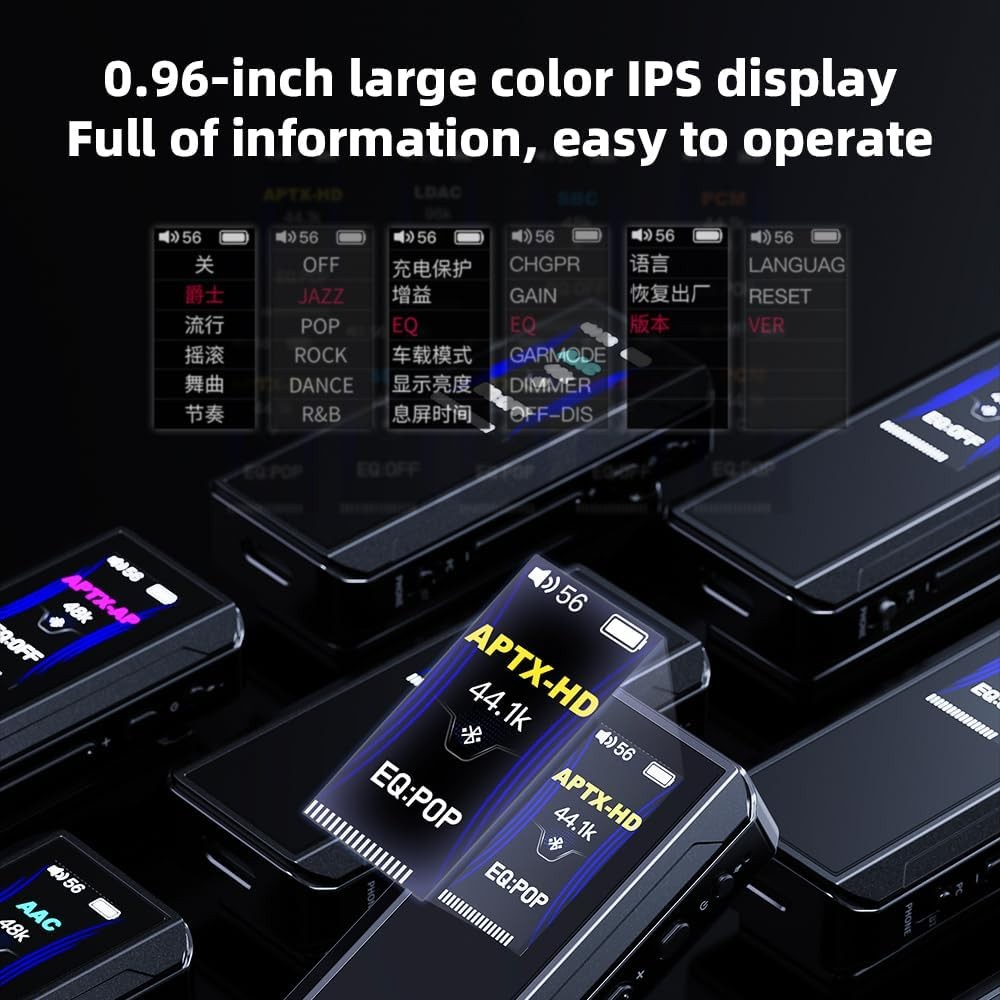

- 0.96-inch large color IPS
- Patented car mode Supports mics and in-line controls
Technical Specifications
- Hardware Solution: DAC: CS43131 x2, USB/Bluetooth decoding: QCC5125
- Weight: About 28.6g
- Dimensions: About 63.2x30x18.8mm
- Driver-free Mode (Switch Mode): Supported
- Phone Decoding (USB Dongle): Supported (switch the Mode Switch to PHONE)
- Microphone: Supports Bluetooth voice call, built-in omnidirectional microphone
- In-Vehicle Mode: Auto on/off following the USB of the vehicle
- Gain: L/H
- Channel Balance: ＜0.2dB
- Deep Standby: Auto-enters power saving mode if no connection in 3 minutes, can be set in app
- FiiO Control: Supports settings in the app
- Bluetooth Codec Indication: Blue: SBC; Cyan: AAC; Purple: aptX/aptX LL; Yellow: aptX HD; White: LDAC; Green: aptX Adaptive
- Status Indication: Indicates transmission codec, charging status, battery level, volume, sampling rate, EQ, and menu

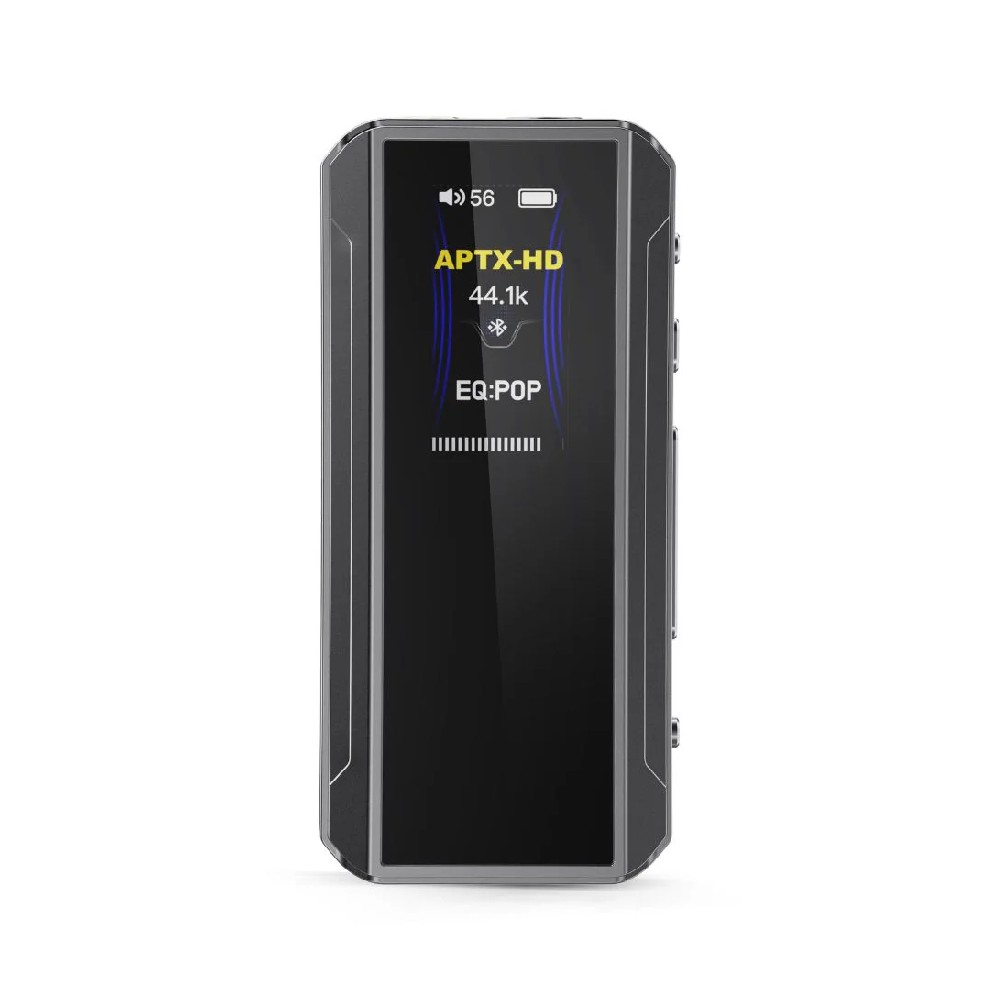

- Display: 0.96-inch TFT (80*160) bezel-less display
- Bluetooth Reception (5.1): AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC
- Recommended Impedance :PO: 8~150Ω; BAL: 8~350Ω
- Firmware Upgrade: OTA upgrade through FiiO Control
- Max Supported Sampling Rate: PCM: up to 96kHz/16bit
- Physical Buttons: Power button, multifunction button, volume up/down buttons
- USB Port: Type-C USB (Charging/Data transmission)
- Headphone Output: Standard 3.5mm plug
- Balanced Headphone Output: Standard 4.4mm plug

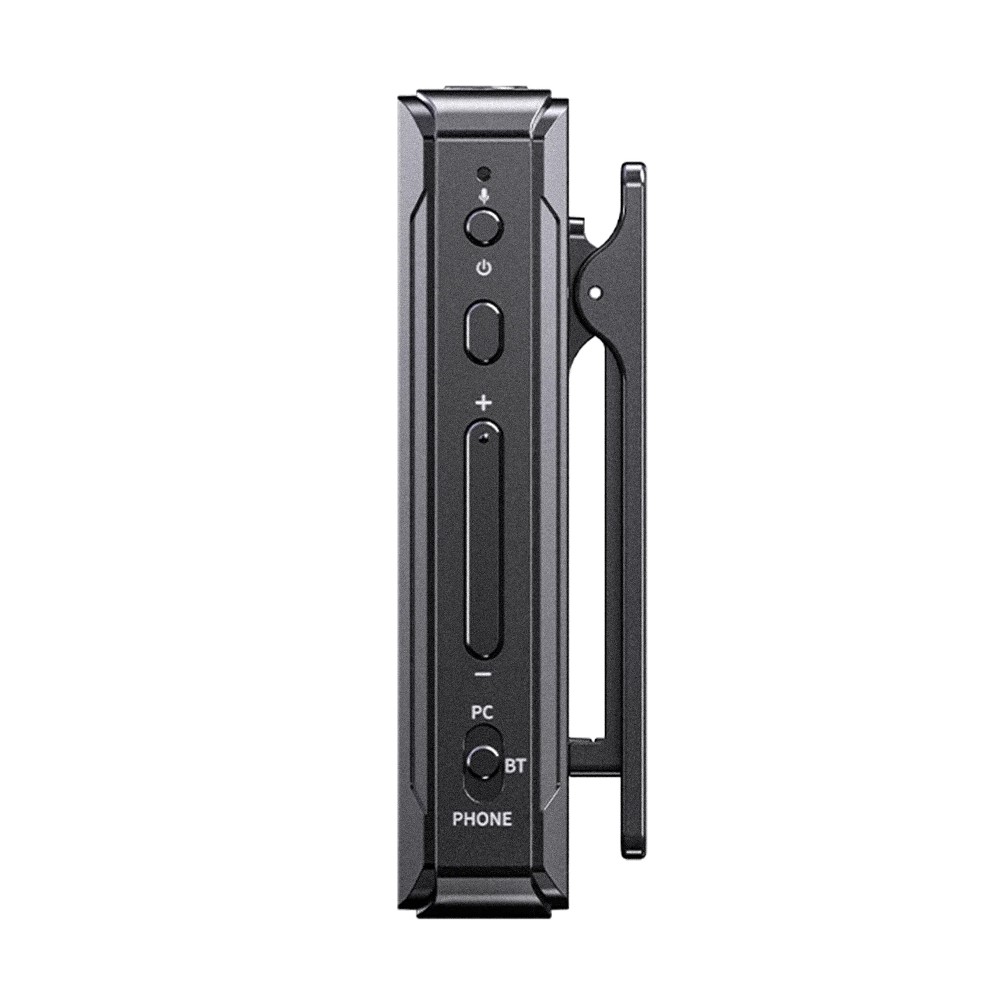

- Trigger Switch: Mode switch
- 3.5mm headphone out: ≥8 hours
- Audio input: Bluetooth reception
- Bluetooth codec: AAC
- Volume: 22 levels
- Gain: High
- Display status: Off
- Play track and format: MP3 44.1kHz/16bit
- EQ: Off
- Load: 32Ω
- 4.4mm headphone out: ≥8 hours
- Audio input: Bluetooth reception
- Bluetooth codec: AAC
- Volume: 21 levels
- Gain: High
- Display status: Off
- Play track and format: MP3 44.1kHz/16bit
- EQ: Off
- Load: 32Ω
- 3.5mm headphone out: ≥10 hours
- Audio input: USB dongle mode (switch the Mode Switch to PHONE)
- Volume: 22 levels
- Gain: High
- Display status: Off
- Play track and format: 44.1kHz/16bit
- EQ: Off
- Load: 32Ω
- 4.4mm headphone out: ≥10 hours
- Audio input: USB dongle mode (switch the Mode Switch to PHONE)
- Volume: 21 levels
- Gain: High
- Display status: Off
- Play track and format: 44.1kHz/16bit
- EQ: Off
- Load: 32Ω
What's Included
- 1 x FiiO BTR13
- 1 x Screen Protector (Pre-installed)
- 1 x Dual Type-C Data Cable
- 1 x Lanyard
- 1 x Quick Start Guide
- 1 x Warranty Card
