Product Description

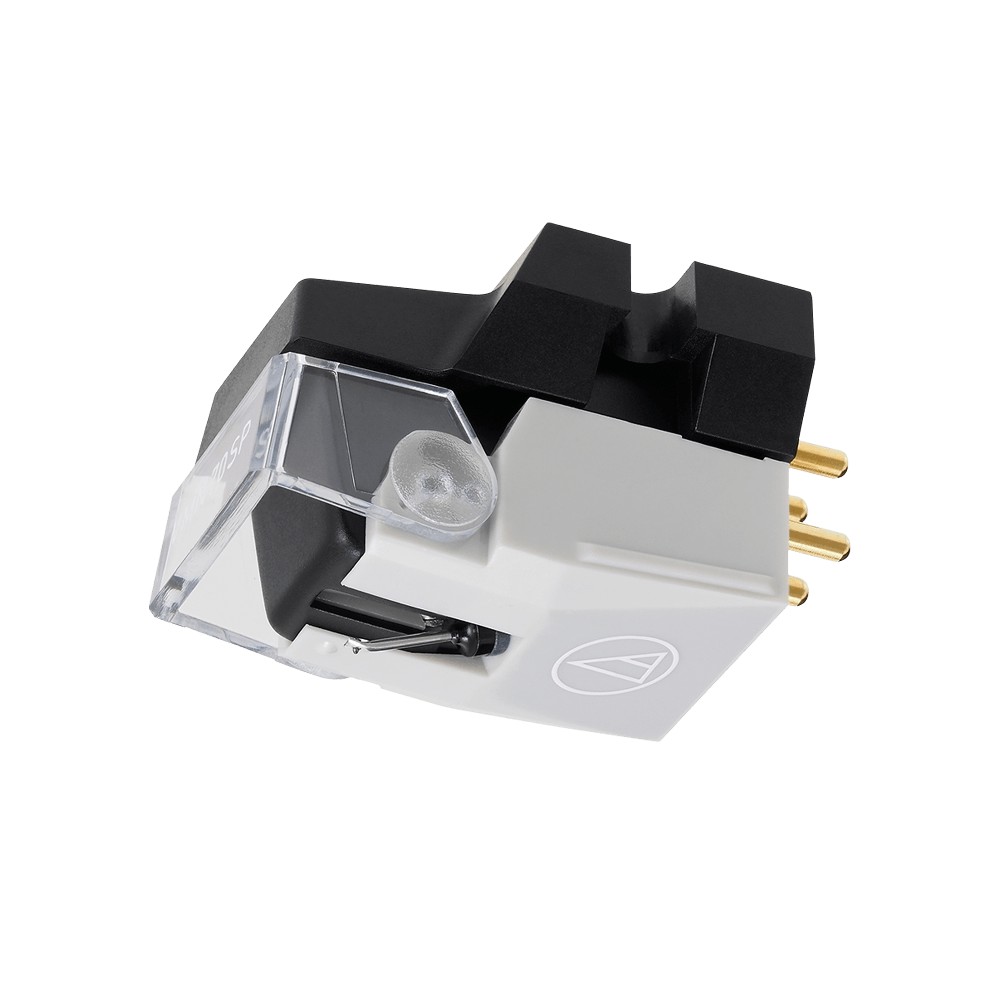

The VM670SP Dual Moving Magnet Conical Stylus Cartridge from Audio-Technica is equipped with dual magnets that are internally connected to reduce record noise and obtain a focused center sound image. The stylus' 3.0 mil curvature radius makes it a suitable choice for playing 78s from a wide variety of eras. This cartridge is designed for 78 rpm mono records reproduction.
Key Features
- VM dual magnet cartridge with 3.0 mil conical stylus
- Aluminum cantilever
- Paratoroidal coils improve generating efficiency
- Mono body terminating left and right channels reduce surface noise
- Durable low-resonance polymer housing
Technical Specifications
- Frequency Response: 20 - 20,000Hz
- Vertical Tracking Angle: 23˚
- Stylus Construction: Bonded Round Shank
- Recommended Load Impedance: 47,000Ω
- Coil Impedance: 1,400Ω (1kHz)
- Output Voltage: 3.0mV (1kHz, 5cm/sec.)
- Stylus Shape: Conical Bonded (3mil)
- Cantilever: Aluminium Pipe
- Static Compliance: 15 x 10-6 cm/dyne
- Dynamic Compliance: 2.0 x 10-6 cm/dyne (100Hz)
- Mounting: 1/2” centres
- Dimensions: 17.3 (H) x 17.0 (W) x 28.2 (L) mm
- Recommended Load Capacitance: 100 – 200pF
- Replacement Stylus: VMN70SP
- Stylus Size: 3.0 mil
- Type: VM Type
- Weight: 6.4g
What's Included
- Audio-Technica VM670SP Dual Moving Magnet Conical Stylus Cartridge
- 4 x Cartridge Installation Screw (2 x 5mm and 2 x 10mm)
- 2 x Washer
- 2 x Hexagon Nut
