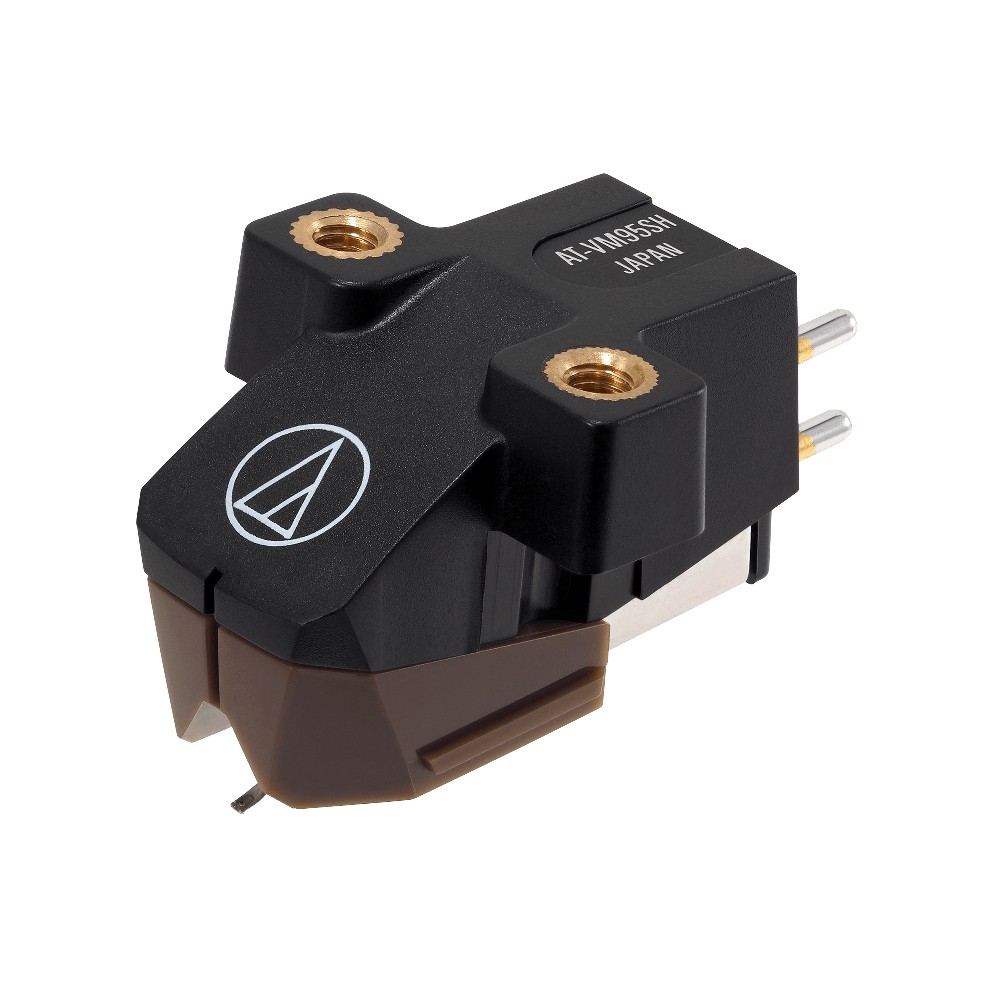

Audio-Technica AT-VM95SH Dual Moving Magnet Shibata Stereo Cartridge

S$269.00
SKU:
4961310145989

Product Description

The AT-VM95SH, features a Nude Shibata stylus, one of the most acclaimed stylus format by high end audiophiles. The Shibata stylus produces mid and bass sounds strong and rich in addition to offer a frequency response up to 25,000 Hz.

Key Features

  • VM95 series Shibata stereo cartridge
  • Aluminium cantilever
  • 3.5mV output voltage
  • Compatible body with all VM95 Series stylus assemblies
  • 20 to 25,000Hz frequency response

Technical Specifications

  • Model: AT-VM95SH
  • Type: VM Stereo Dual Magnet
  • Mounting: 1/2” centres
  • Frequency Response: 20 - 25,000 Hz
  • Channel Separation: 23 dB (1 kHz)
  • Output Channel Balance: 1.5 dB (1 kHz)
  • Output Voltage: 3.5 mV (@ 1 kHz, 5 cm/sec)
  • Vertical Tracking Angle: 23°
  • Vertical Tracking Force Range 1.8 - 2.2g (standard 2.0 g)
  • Stylus Shape: Shibata
  • Stylus Size: 2.7 x 0.26mil
  • Stylus Construction: Nude Square Shank
  • Cantilever: Aluminium Pipe
  • Coil Impedance: 3.3 kΩ (1 kHz)
  • Coil Inductance: 550 mH (1 kHz)
  • DC Resistance: 485 Ω
  • Static Compliance: 20 x 10 – 6 cm / dyne
  • Dynamic Compliance: 10 x 10 – 6 cm / dyne (100 Hz)
  • Wire Used for Coil: T.P. Copper
  • Recommended Load Impedance: 47,000 Ω
  • Recommended Load Capacitance: 100-200 pF
  • Cartridge Weight: 6.1g
  • Dimensions: 17.2 x 18.9 x 28.3 ( H x W x D mm)
  • Replacement Stylus: AT-VMN95SH

What's Included

  • Two 11 mm installation screws
  • Two 8 mm installation screws
  • Two washers
  • Non-magnetic screwdriver

Other Details

Features:
Dual Moving Magnet
