Audio-Technica AT-VM95ML/H Dual Moving Magnet Microlinear Stereo Cartridge On AT-HS6 Headshell

S$268.00
SKU:
4961310146504

Product Description

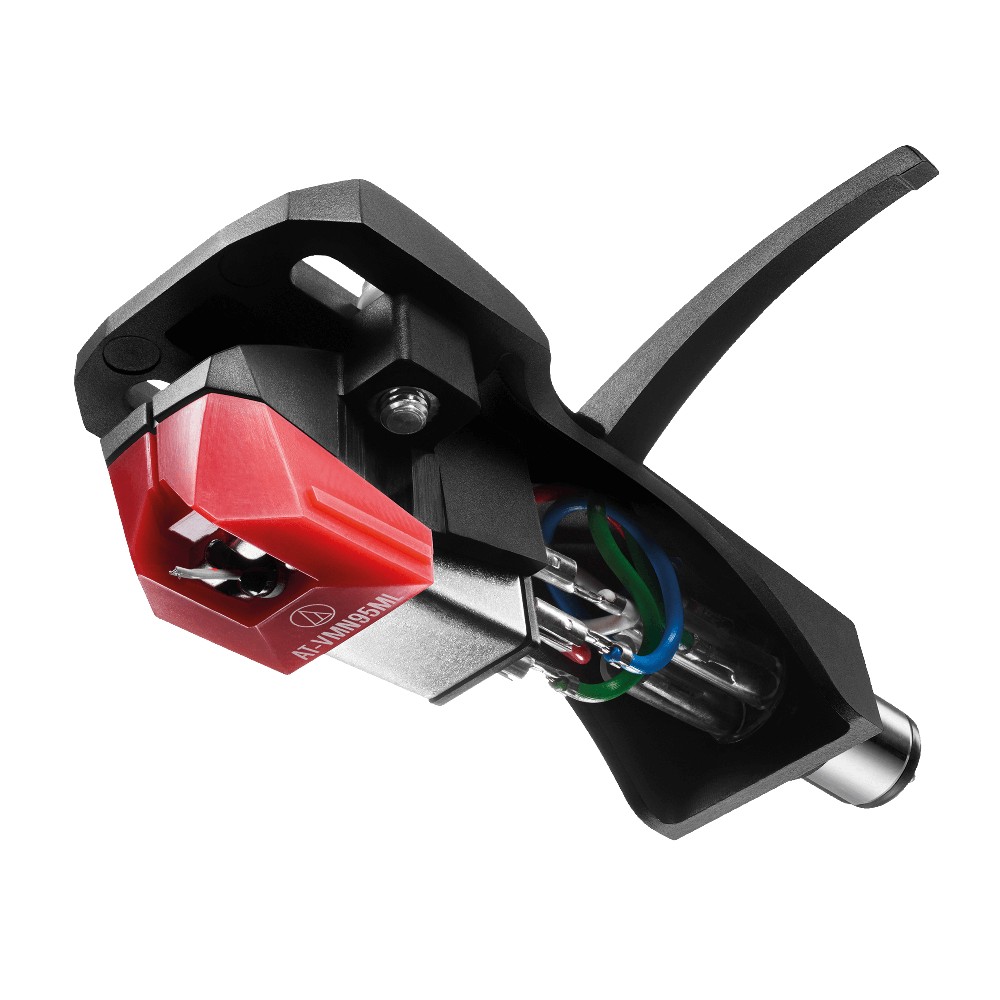

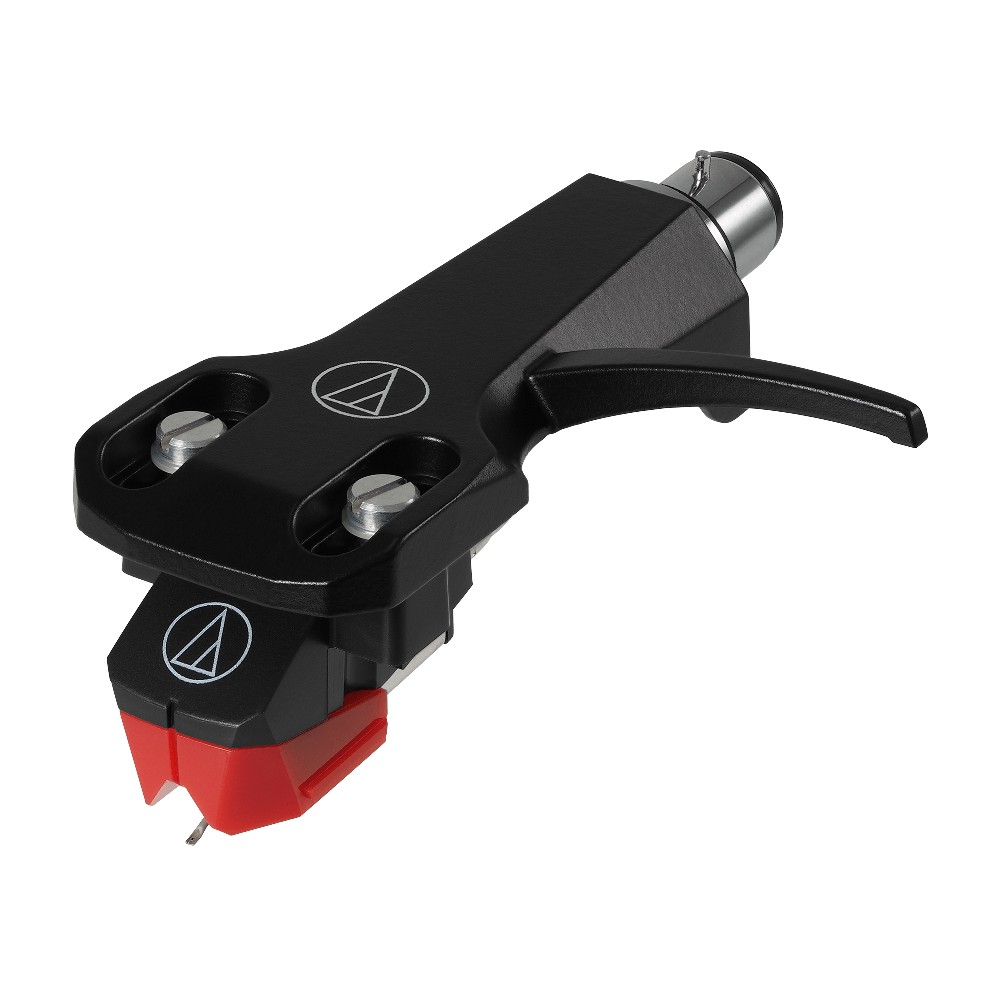

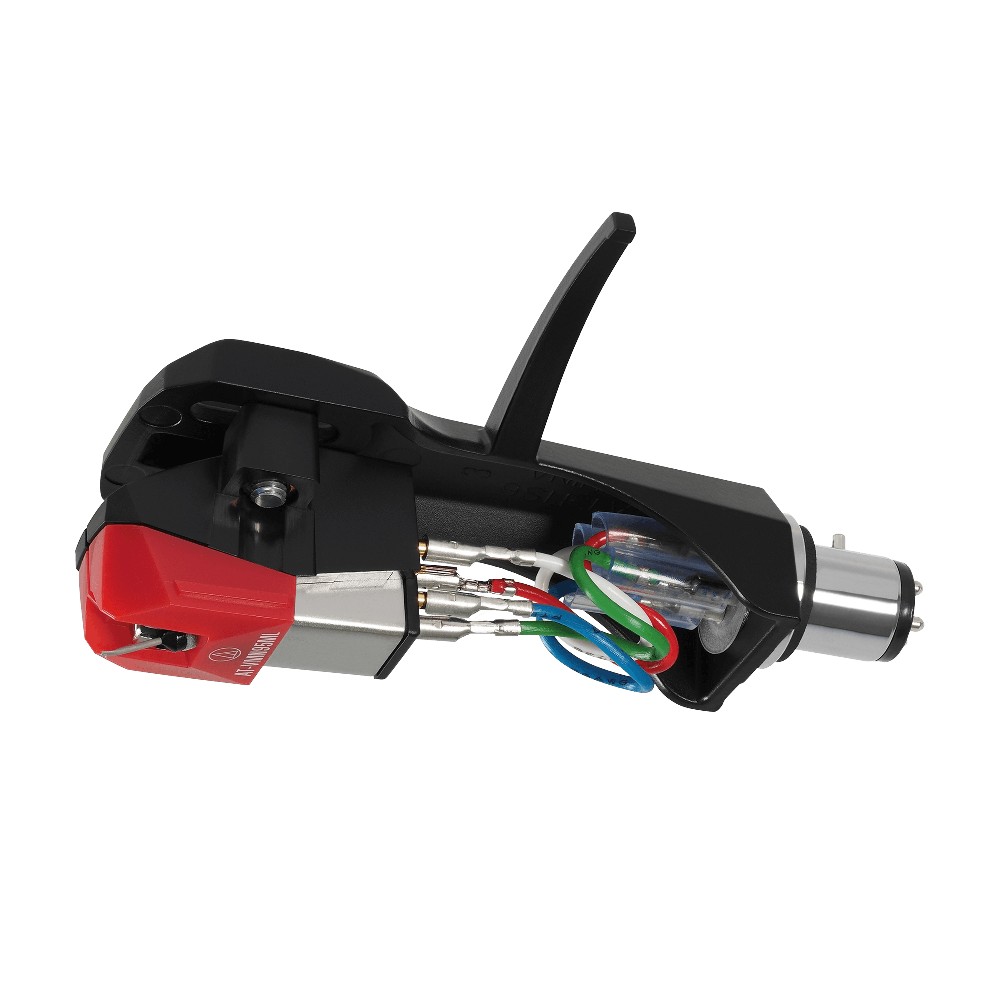

The Audio Technica Consumer AT-VM95ML/H is a kit that pre-mounts the AT-VM95ML dual moving magnet cartridge on to the AT-HS6BK headshell.

Audio-Technica Consumer AT-VM95ML Dual Moving Magnet Cartridge

The Audio-Technica Consumer AT-VM95ML Dual Moving Magnet Cartridge delivers high channel separation and low distortion for remarkable tonal quality. The cartridge can be mounted to a standard 1/2" mount and features integrated threaded inserts, allowing it to be mounted with just two screws (no nuts required).

The Microlinear stylus is designed to duplicate the shape of the cutting stylus used to produce the original master disk, enabling it to track portions of the groove other styli cannot reach. The result is an accurate tracking of high-frequency passages and a flat-frequency response within the audible range. The unusual multi-level shape wears more evenly, allowing for extended record and stylus life. All VM95 Series share the same body, allowing the stylus to be replaced with any of the six interchangeable AT-VMN95 replacement styli. The Audio-Technica Consumer AT-VM95ML ships with mounting hardware and a non-magnetic screwdriver.

  • VM dual magnet cartridge with 2.2 x 0.12 mil Microlinear stylus
  • Aluminum cantilever
  • Durable low-resonance polymer housing
  • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws—no nuts or washers required
  • Compatible with any AT-VMN95 replacement stylus
Audio-Technica Consumer AT-HS6 9g Headshell Aluminum Die Cast Body (Black)

The black Audio-Technica Consumer AT-HS6 is a lightweight (9g) headshell mount. Featuring an aluminum die-cast body, it is designed to keep vibration to the bare minimum. The finger lift is positioned near the front of the headshell to enable precise placement of the stylus onto the record. The headshell is equipped with quad wire terminals and comes with mounting hardware.

Key Features
  • Pre-Mounted and Ready to Play
  • AT-VM95ML Dual Moving Magnet Cartridge
  • Low Distortion & High Channel Separation
  • Microlinear Stylus
  • Low-Resonance Housing
  • AT-HS6BK Headshell
  • Integral Finger Lift
  • Designed to Reduce Vibration

Technical Specifications

  • Frequency Response: 20 - 25,000 Hz
  • Channel Separation: 23 dB (1 kHz)
  • Vertical Tracking Angle: 23°
  • Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
  • Stylus Construction: Nude Square Shank
  • Recommended Load Impedance: 47,000 Ω
  • Coil Impedance: 3.3 kΩ (1 kHz)
  • DC Resistance: 485 Ω
  • Coil Inductance: 550 mH (1 kHz)
  • Output Voltage: 3.5 mV (@ 1 kHz, 5 cm/sec)
  • Output Channel Balance: 1.5 dB (1 kHz)
  • Stylus Shape: Microlinear
  • Cantilever: Aluminium Pipe
  • Static Compliance: 20 x 10 – 6 cm / dyne
  • Dynamic Compliance: 10 x 10 – 6 cm / dyne (100 Hz)
  • Mounting: 1/2” centres
  • Dimensions: 21.2 × 21.4 × 62.4 ( H x W x D mm)
  • Model: AT-VM95ML/H
  • Recommended Load Capacitance: 100-200 pF
  • Replacement Stylus: AT-VMN95ML
  • Stylus Size: 2.2 x 0.12 mil
  • Type: VM Stereo Dual Magnet
  • Weight: 15.5 g
  • Wire Used for Coil T.P. Copper

What's Included

  • Audio-Technica Consumer AT-VM95ML Dual Moving Magnet Cartridge
  • Set of Mounting Hardware (4 x Screws and 2 x Washers)
  • Non-Magnetic Screwdriver
  • Audio-Technica Consumer AT-HS6 9g Headshell Aluminum Die Cast Body (Black)
  • Mounting Hardware

Other Details

Features:
Dual Moving Magnet
